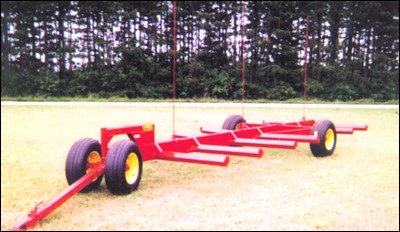

• Tricycle Steering - Allows unit to support the full load and gives you 90 degree turning.
• Capacity - 6 Bales 48 in. dia. to 75 in. dia.
• Main Beam - 10 X 4 Rectangular Structural Tubing
• Axle -  Heavy Duty 8 X 3 tube with reinforced bridging
• Cross Supports - 4 X 4 Square tubing set diagonally to cradle bale securely
• Tongue - Adjustable hitch - Standard
• Reinforced at all highload areas
• 3 Spring Loaded Guide Rods

MODEL 848 FEATURES

• Hauls 8 Bales across the bottom and 2 more with our CARRIER ATTACHMENT
• 2" Spindles on the front and 2-1/4" Spindles on the back for  large load capacity.
• Heavy Duty 8-Bolt hubs on rear.
• Reinforced bridging on main frame for added strength.

BALE CARRIER ATTACHMENT

• Used if you are hauling bales smaller than 6 ft.
• Adds 2 more bales to your hauling capacity.
• Attached with two U-Bolts
• The Attachment is removable if so desired.
• Can be used with Model 646 and 848.

MODEL 2003 SPEAR LIFT

• Capacity - 2000 lbs.
• 3 Pt. Hitch - With category 2 or 3
• Spear - 2 in. 1045 cold rolled steel x 48 in. long
• Two stabilizing spears are 1in. dia. x 14 in. long
• Constructed of all 1/4 in. wall, 4 in. tubing


Pequea Machine Corp reserves the right to change specifications without notice.
