Combine Header Transports
Quick-Trak and Header Trailer

Quick-Trak 2000 HD

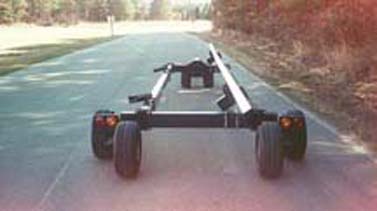

The QUICK-TRAK 2000 HD Header Trailer is a heavy duty header trailer built to accommodate up to a 30' grain or corn head.

The
QUICK-TRAK 2000 HD Header Trailer has 20' wheel base.

The
QUICK-TRAK 2000 HD Header Trailer is capable of traveling at highway speeds.

No more wandering of fishtailing ...the tricycle design of the Quick-Trak wagon follows the lead of the combine

Additional Features:

Adjustable tongue

4-20.5 x 8 x 10 Low Profile "F" Rated tires

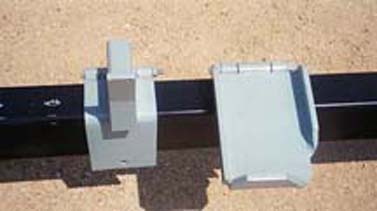

FLIP BLACKSTOP to fit different types of heads Slide backstops into position and tighten. Flip brackets in or out as needed.

Easy Storage, by putting the tongue completely under the wagon.

Reinforced ends to help support the weight

Easy to adjust swing arm to accommodate either a grain or corn head. Just flip into proper position.



Extra Heavy Duty Bridge for added support

TANDEM QUICK-TRAK Model 3006

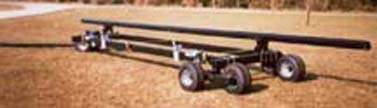

The TANDEM QUICK-TRAK Header Trailer is an extra heavy duty header trailer built to accommodate those 30’ + heads. The feeder bar is one piece.

The tandem rear axle with its unique setup allows all six wheels to trail in a different track. This will minimize soil compaction.


The TANDEM QUICK-TRAK Header Trailer has a 21’4" wheel base.
The TANDEM QUICK-TRAK Header Trailer is capable of traveling at highway speeds.

OTHER FEATURES:

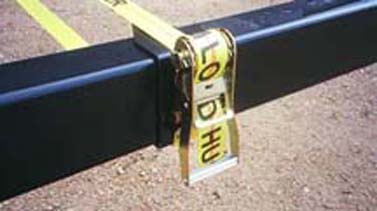

D.O.T approved tie down straps

  • Adjustable Tongue
  • 3 Tie down straps & ratchets D.O.T. Approved
  • Highway approved lighting system
  • 6-20.5 x 8 x 10 Low profile "F" Rated tires
  • Sickle storage in the cutterbar
  • Extra wide row crop shoes for easier placement of head
  • Able to store the tongue under the wagon
  • Tandem rear axle with individual tire tracks

    Extra wide row crop shoes and contrasting colored brackets for easier loading.


    Other Specifications:

    Tread Width

    81"

    Wheel base

    21’4"

    Tongue Length

    9’ to 11’6"

    Approx. Weight

    1725 lbs.

    Upper Support Tube

    30’ to 36’

    Max. Height

    37"

    Lower Support Tube Length

    18’

    Rest Bracket Min. Height

    19"

    20.5 x 8 x 10 "F" Rates Tires

    6

    Pequea Machine Corp reserves the right to change specifications without notice.
