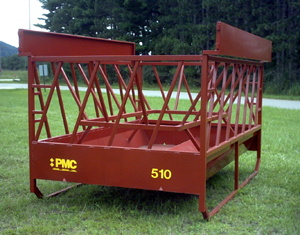

Products MODEL 500, 510 and 512 Bale Feeder With Skids
Replace you old bale rings with the model 500, 510 and 512 bale feeder with skids and save lots of hay from going to waste with its inside frame to cradle the bale.
Hay Savings will soon pay for the feeder!
Model 512 Feeder on Skids
Our Model 512 Feeder on skids has the capacity to hold up to 2- 6ft round bales at one time.
The Model 512 feeder has 24 Feed openings.
INSIDE DIMENSIONS: 80" X 140"
OUTSIDE DIMENSIONS: 6’10" X 12’
PAN DEPTH: 15"
FROM GROUND TO TOP OF PAN: 28"
HEIGHT OF FEEDER BAR OPENINGS: 34"
OVERALL HEIGHT: 64"
PAN IS 12 GAGE SHEET
FRAME IS 2" SQ. TUBING
1-1/4" SQ. TUBING FOR FEEDER BARS
24 FEED OPENINGS
INSIDE DIMENSIONS: 72" X 92"
OUTSIDE DIMENSION: 6'4" X 8' PAN DEPTH: 15"
HEIGHT OF FEEDER BAR OPENINGS: 34" OVERALL HEIGHT: 64" PAN IS 12 GAGE SHEET FRAME IS 2" SQ. TUBING 1-1/4" SQ.TUBING FOR FEEDER BARS 18 FEED OPENINGS 4 DRAIN HOLES WEIGHT: 750 LBS
INSIDE DIMENSIONS: 72" X 116"
OUTSIDE DIMENSIONS: 6'4" X 10'
PAN DEPTH: 15" FROM GROUND TO TOP OF PAN: 28" HEIGHT OF FEEDER BAR OPENINGS: 34" OVERALL HEIGHT: 64" PAN IS 12 GAGE SHEET FRAME IS 2" SQ. TUBING 1-1/4" SQ. TUBING FOR FEEDER BARS 20 FEED OPENINGS
4 DRAIN HOLES WEIGHT: 938 LBS
Option: Side Extensions. Available for both models. Use for extra large bales. 2 panels or 4 panels are available. Just slide into the corner pockets and hooks together. No tools required!
